0603(1.6x0.8)-貼片保險絲

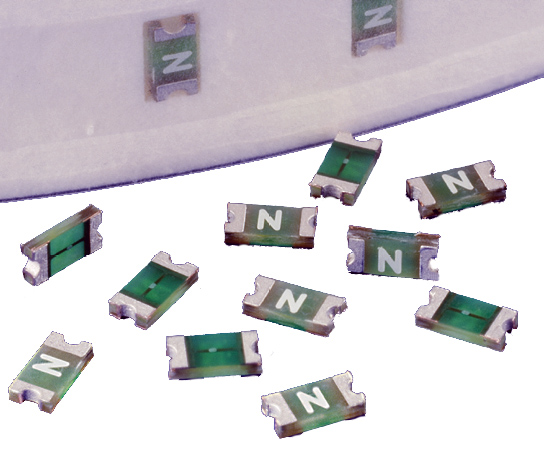

實物圖片：
Features產品特點：
? Compatible with leadfree solders and higher temperature profiles.
? High performance materials provide improved performance in elevated ambient temperature applications.
? Marked on top surface with code to allow amp rating identification without testing.
? Low profile for height sensitive applications.
? Flat top surface for pickand-place operations.
? Element covering material is resistant to industry standard cleaning operations.
Applications產品應用：
Secondary protection for space constrained applications:
? Cell phones
? Battery packs
? Digital cameras
? DVD players
? Hard disk drives.
|
Electrical Characteristics for Series
|
|
% of Ampere Rating
|
Opening Time at 25OC
|
|
100%
|
0.25-8A
|
4 hours, Minimum
|
|
200%
|
0.25-6A
|
5 sec., Maximum
|
|
250%
|
7-8A
|
5 sec., Maximum
|
|
300%
|
0.25-8A
|
0.2 sec., Maximum
|
Electrical Specifications by Item
|
AmpereRating
(A)
|
Amp
Code
|
Max
Voltage
Rating(V)
|
Interrupting
Rating
|
Nominal Cold
Resistance
(Ohms)
|
Nominal
Melting
I2t (A2sec)
|
Nom
Voltage
Drop(mV)
|
Nom
Power
Dissipation
(W)
|
Agency Approvals
|
|
UR
|
CSA
|
|
0.250
|
.250
|
125
|
50A @32V AC
50A@63VDC
|
0.5450
|
0.0030
|
158.56
|
0.0396
|
x
|
x
|
|
0.375
|
.375
|
125
|
0.2900
|
0.0053
|
128.03
|
0.0480
|
x
|
x
|
|
0.500
|
.500
|
125
|
0.1870
|
0.0087
|
115.71
|
0.0579
|
x
|
x
|
|
0.750
|
.750
|
125
|
0.1170
|
0.0171
|
107.33
|
0.0805
|
x
|
x
|
|
1.00
|
001.
|
125
|
0.0710
|
0.0212
|
89.10
|
0.0891
|
x
|
x
|
|
1.25
|
1.25
|
125
|
0.0530
|
0.0518
|
84.125
|
0.1054
|
x
|
x
|
|
1.50
|
01.5
|
125
|
0.0410
|
0.0766
|
81.14
|
0.1217
|
x
|
x
|
|
1.75
|
1.75
|
125
|
50A @32V AC/DC
|
0.01250
|
0.0903
|
78.75
|
0.1378
|
x
|
x
|
|
2.00
|
002.
|
125
|
0.0300
|
0.1103
|
78.22
|
0.1564
|
x
|
x
|
|
2.50
|
02.5
|
63
|
0.0220
|
0.1440
|
76.10
|
0.1903
|
x
|
x
|
|
3.00
|
003.
|
63
|
0.0180
|
0.2403
|
75.04
|
0.2251
|
x
|
x
|
|
3.50
|
03.5
|
63
|
0.0150
|
0.4306
|
74.25
|
0.2599
|
x
|
x
|
|
4.00
|
004.
|
63
|
0.0130
|
0.5760
|
73.72
|
0.2949
|
x
|
x
|
|
5.00
|
005.
|
63
|
0.0090
|
0.9000
|
72.71
|
0.3635
|
x
|
x
|
|
6.00
|
006
|
63
|
0.0085
|
1.3838
|
72.00
|
0.432
|
x
|
x
|
|
7.00
|
007
|
63
|
0.0080
|
1.5673
|
68.51
|
0.5123
|
x
|
x
|
|
8.00
|
008
|
63
|
0.0075
|
1.8321
|
65.24
|
0.5945
|
x
|
x
|
1. Measured at 10% of rated current, 25oC. 2. Measured at rated voltage.

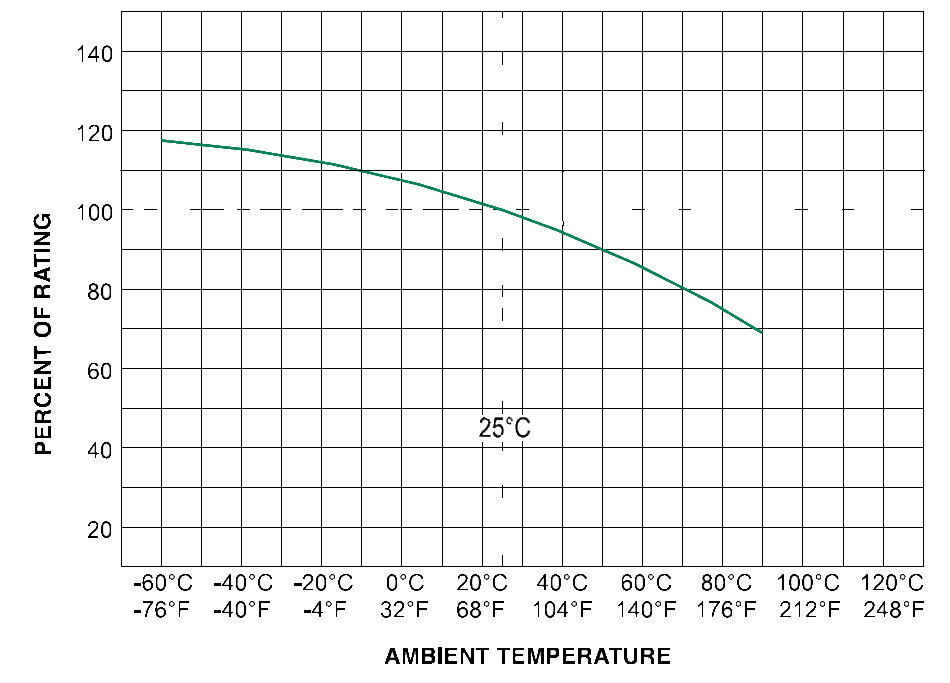

Temperature Rerating Curve
Note:
1. Derating depicted in this curve is in addition to the standard derating of 25% for
continuous operation.
Example:For continuous operation at 70 degrees celsius, the fuse should be deratedas follows:
I = (0.75)(0.80)IRAT = (0.60)IRAT
2. The temperature derating curve represents the nominal conditions. For questions about temperature derating curve,
please consult our technical support for assistance.
Average Time Current Curves
Soldering Parameters
|
Reflow Condition
|
Pb– Free assembly
|
|
Pre Heat
|
Temperature Min (Ts(min))
|
150°C
|
|
Temperature Max (Ts(max))
|
200°C
|
|
Time (Min to Max) (ts)
|
60 – 180 secs
|
|
Average ramp up rate (Liquidus Temp(TL) to peak
|
5°C/second max
|
|
TS(max) to TL-Ramp-up Rate
|
5°C/second max
|
|
Reflow
|
Temperature (TL) (Liquidus)
|
217°C
|
|
Temperature (tL)
|
60 – 150 seconds
|
|
Peak Temperature (TP)
|
250+0/-5 °C
|
|
Time within 5°C of actual peak Temperature (tp)
|
20 – 40 seconds
|
|
Ramp-down Rate
|
5°C/second max
|
|
Time 25°C to peak Temperature (TP)
|
8 minutes Max.
|
|
Do not exceed
|
260°C
|
|
Wave Soldering
|
260°C, 10 seconds max.
|
Product Characteristics
|
Materials
|
Body: Advanced High Temperature Substrate
|
|
Terminations: 100% Tin over Nickel over Copper
|
|
Element Cover Coat: Conformal Coating
|
|
Operating Temperature
|
– 55OC to 90OC. Consult temperature rerating curve chart. For operation above 90°C contact us
|
|
Humidity
|
MIL-STD-202F, Method 103B, Condition D
|
|
Thermal Shock
|
Withstands 5 cycles of – 55OC to 125OC
|
|
Vibration
|
Per MIL-STD-202F
|
|
Insulation Resistance (After Opening)
|
Greater than 10,000 ohms.
|
|
Resistance to Soldering Heat
|
MIL-STD-202G, Method 210F,Condition D
|
Dimensions
Dimensions
|
|
|
|
Part Marking System
|
|
Amp Code
|
Marking Code
|
|
.250
|
D
|
|
.375
|
E
|
|
.500
|
F
|
|
.750
|
G
|
|
001.
|
B
|
|
1.25
|
J
|
|
01.5
|
H
|
|
1.75
|
L
|
|
002.
|
K
|
|
02.5
|
L
|
|
003.
|
O
|
|
03.5
|
R
|
|
004.
|
S
|
|
005.
|
T
|
|
006
|
U
|
|
007
|
V
|
|
008
|
W
|
|
